| Buque de suministro PSV - Ulstein Design UT 706 | |
| Identificación del barco | 8060 |
| Categoría | Remolcador |
| Clase | nV |
| Año de construcción | 1983 |
| Bandera | Territorio Británico del Océano Índico |
| Enviar fecha agregada | 2024-04-10 |
| Añadido por | Norsk Megling & Auksjon AS |
Peso medido
| DWT | 3366 |
Dimensiones del barco
| Longitud total (LOA), metro | 80.5 |
| Calado del buque, metro | 5 |
información adicional

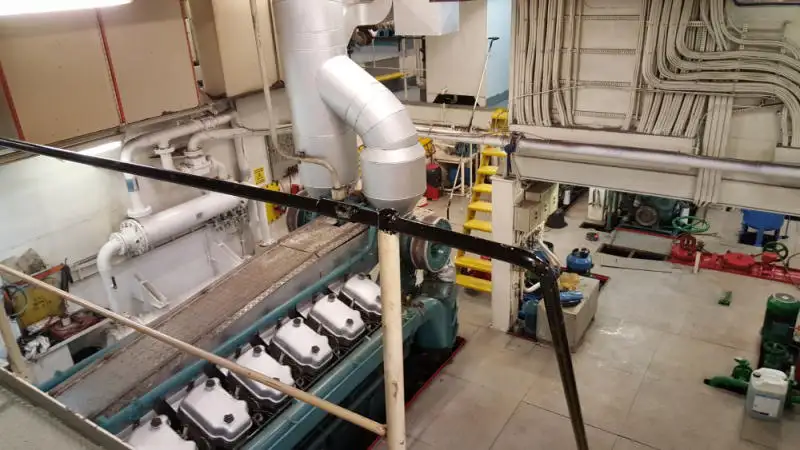

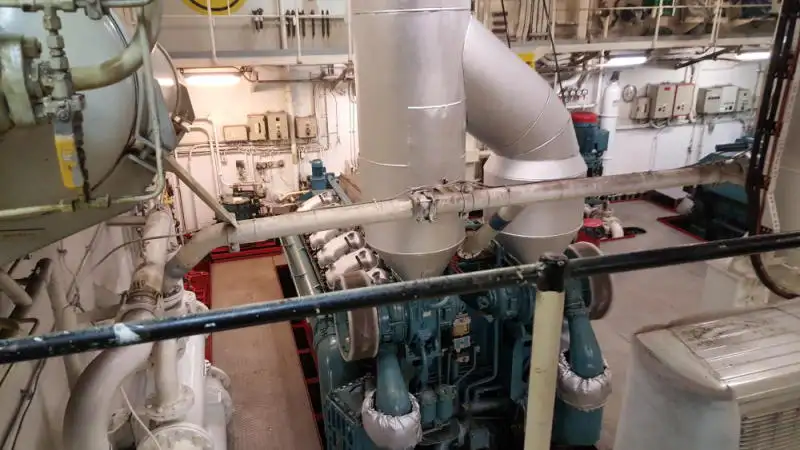

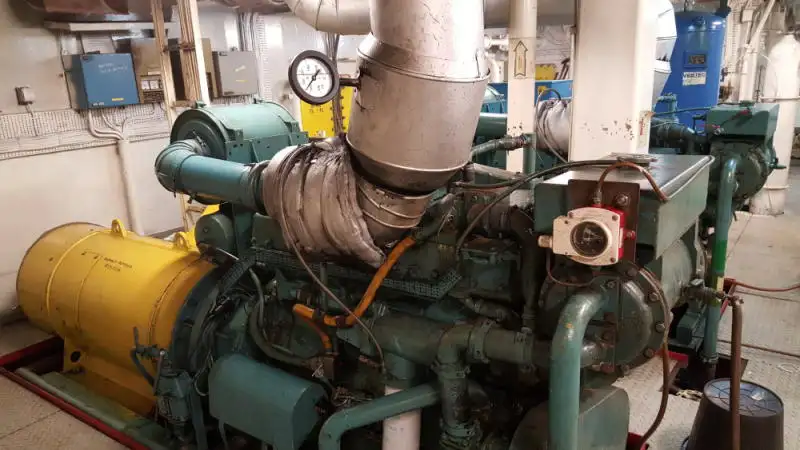

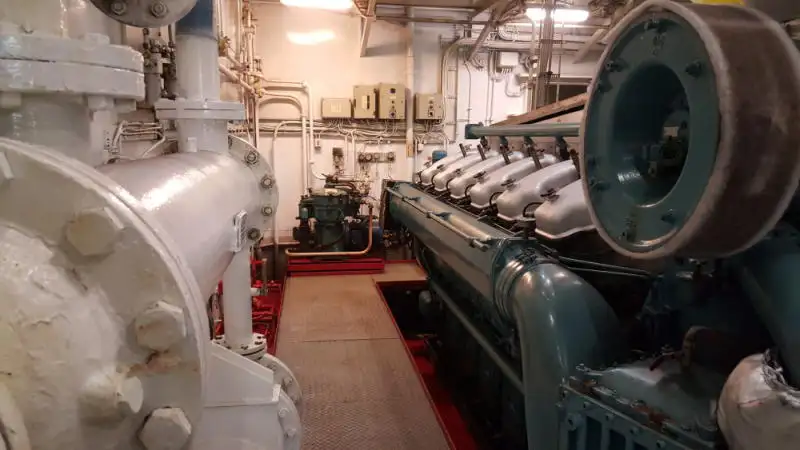

| Motor principal | Generators 1 Cummins, NTA 8556, s/n 23176818, 298 kW, 1800 rpm Generators 2 Cummins, NTA 8556, s/n 23176819, 298 kW, 1800 rpm Propellers 2 x CPP Post@skipsbrukt.no 2 x Bergen Diesel KVM 12B, s/n 7536/7537, ea. 2250 kW, 825 rpm Rudders 2 x Spade Thrusters Rolls-Royce, Type 150 TV, 2 x 800 BHP (Bow) 2 x 800 BHP (Stern) Joystick Rolls-Royce Capstans 2 x 10 T Deck Crane PS Deck Crane STB 1 x Hydralift, MCVT 504-5-95 MOB 3250, SWL 3.8t Tugger winch 2 x 10 T Windlass Brattvaag, M2202 Anchor chain 39 shackles tot, 36mm Anchors 2 x SPEK, 2100 kg each SPEED AND CONSUMPTION Stand-by abt. 1-2 t/day Service speed Abt. 12 knots @ abt. 12 t/day Full speed Abt. 14 knots @ abt. 22 t/day CARGO & DISCHARGE CAPASITY Deck and area total 795 m2 (53 m x 15 m) Deck cargo capacity 2.450 t@ 5 t/m2 Diesel Oil 1198 m3 @ 100% Potable / Drill water 665 m3 @ 100% Brine 1740 bbls @ 100% Mud 2340 bbls @ 100% Base Oil 1372 bbls @ 100% Dry Bulk 13.500 cuft in 8 tks Diesel Oil, discharge 250 m3/hr @ 60 m hd Potable Water, discharge 200 m3/hr @ 90 m hd Drill Water, discharge 2 x 170 m3/hr @ 90 m hd Brine, discharge 1 x 75 m3/hr @ 18 bar Dry Bulk, discharge 100 mt/hr @ 80 PSI Mud, discharge 2 x 50 m3/hr @ 18 bar ACCOMMODATION Total capacity 23 Cabins (w/satellite-TV) NAVIGATION EQUIPMENT Radar 1 Furuno FR-21X7 Radar 2 Furuno Arpa-FR 2135S Echo Sounder 1 Simrad ED 16 t, s/n 850746 Gyro compass 1 Anschutz STD 22, s/n 1023ng 001 Autopilot Robertson AP9 MKII GPS 1 JRC JLR 20 GPS 2 Furuno GP-80 GPS |
| Autopropulsado |
